类型 | 钻石工具 |
---|---|
适用机床 | 内孔研磨机 |
产品别名 | 磨头、磨棒 |
是否库存 | 是 |
是否批发 | 是 |
是否提供加工定制 | 是 |
品牌 | 仪豪 |
型号 | SDC/CBN |

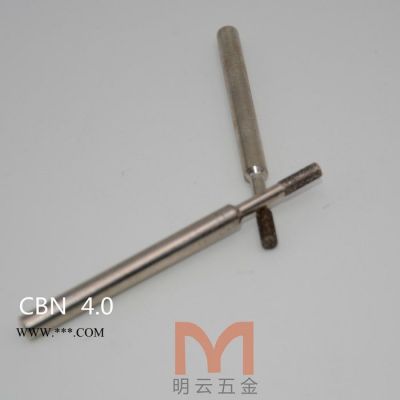

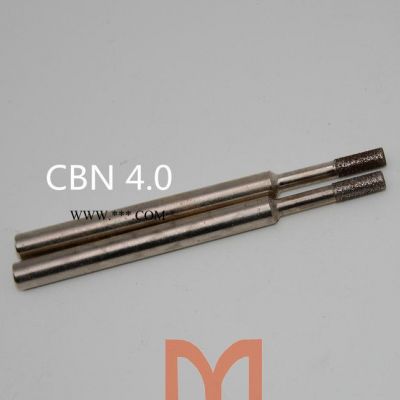

本公司专业生产内孔研磨棒(钻石磨棒),配合内孔研磨机使用,可用于内径研磨,如陶瓷、蓝宝石、玻璃及超硬合金之孔径精细研磨,氮化硼(CBN)精密研磨棒,则用于高硬度之碳钢及铬合金钢精细研磨。可使架后的内孔,更高业度。采用合金轴径,因此刚性特强,高精度加工机最为合用
编号/Orderno. | ¢D | T | N | L | ¢B | 粒度 | |
钻石/Diamond | 氮化硼/CBN | ||||||
YD-3004 | YB-3004 | 0.4 | 2 | 5 | 45 | 3.0 | #400 |
YD-3005 | YB-3005 | 0.5 | 2 | 5 | 45 | 3.0 | #400 |
YD-3006 | YB-3006 | 0.6 | 3 | 5 | 45 | 3.0 | #200 |
YD-3007 | YB-3007 | 0.7 | 3 | 8 | 45 | 3.0 | #200 |
YD-3008 | YB-3008 | 0.8 | 3 | 8 | 45 | 3.0 | #200 |
YD-3009 | YB-3009 | 0.9 | 4 | 8 | 45 | 3.0 | #200 |
YD-3010 | YB-3010 | 1.0 | 5 | 8 | 45 | 3.0 | #200 |
YD-3015 | YB-3015 | 1.5 | 5 | 8 | 45 | 3.0 | #150 |
YD-3020 | YB-3020 | 2.0 | 5 | 12 | 45 | 3.0 | #150 |
YD-3025 | YB-3025 | 2.5 | 5 | 15 | 45 | 3.0 | #150 |
YD-3030 | YB-3030 | 3.0 | 5 | 15 | 45 | 3.0 | #150 |
YD-3040 | YB-3040 | 4.0 | 5 | - | 50 | 3.0 | #150 |
YD-3050 | YB-3050 | 5.0 | 8 | - | 50 | 3.0 | #150 |
YD-3060 | YB-3060 | 6.0 | 8 | - | 50 | 3.0 | #150 |
YD-6040 | YB-6040 | 4.0 | 10 | 22 | 80 | 6.0 | #100 |
YD-6050 | YB-6050 | 5.0 | 10 | 22 | 80 | 6.0 | #100 |
YD-6060 | YB-6060 | 6.0 | 10 | 22 | 80 | 6.0 | #100 |
YD-6070 | YB-6070 | 7.0 | 10 | - | 80 | 6.0 | #100 |
YD-6080 | YB-6080 | 8.0 | 10 | - | 80 | 6.0 | #100 |
YD-6090 | YB-6090 | 9.0 | 10 | - | 80 | 6.0 | #100 |
YD-6100 | YB-6100 | 10 | 10 | - | 80 | 6.0 | #100 |
YD-6120 | YB-6120 | 12 | 10 | - | 80 | 6.0 | #100 |
YD-6140 | YB-6140 | 14 | 10 | - | 80 | 6.0 | #100 |
YD-6160 | YB-6160 | 16 | 10 | - | 80 | 6.0 | #100 |
YD-6180 | YB-6180 | 18 | 10 | - | 80 | 6.0 | #100 |
YD-6200 | YB-6200 | 20 | 10 | - | 80 | 6.0 | #100 |
