| 外观Appearance | surface smooth no alien material no breakage |
|---|---|
| 带长length of tape | 500-2000M |
| 厚度Thickness | 0.08-0.15mm |
| 带重weight of tape | 105-230g/m2 |
| 云母含量mica content | 55-70% |
| 击穿电压breakdown voltage | 1.0-2.0KV |
| 拉伸强度tensile strength | 150-200N/15mm |
| 胶黏剂含量Binder content | 13±3% |
| 耐火特性fire grades | 750-950°C to IEC 60331 and BS6387 |
| any size can be customize | any size can be customize各种规格支持定做 |
| 产品认证 | ISO9001：2008 |
| 耐温 | 750-950 |
| 适用范围 | 耐火电缆，特种电缆be used in fire resistant cable |
| 颜色 | 产品原色 |
| 总厚度 | 0.08-0.18 |
| 品牌 | 卓成云母 |
| 型号 | JR-P-GS |
| 加工定制 | 是 |
江西卓成云母电工器材有限公司专业生产电缆用耐火云母带、云母卷。
公司拥有专业的高科技生产及检测设备，可年产1000吨云母带提供给电缆生产商。产品皆按照国际质量标准生产出口。
公司拥有多名15年以上云母行业经验的资深专业技术人员，严格按照ISO9001：2008质量管理体系管理运作。
公司秉承诚信立足，以质为本，创新致远，用户至上，是您可信赖的云母专业制造商。
可供规格:
厚度：0.08mm-0.18mm
宽度: 4.5-1000mm
长度：300m-2000m
卷心内径: 52mm,76mm,100mm
塔盘复绕技术，最长可达: 50000m
JR Mica Company

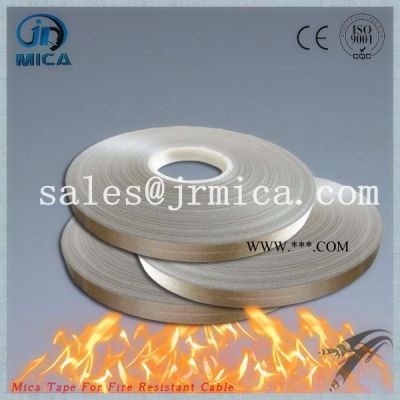

JR Mica Products Co., Ltd is a high-tech company specializing in producing fire resistant mica tape and mica roll for fire resistant cable.
With advanced production and testing equipment ,JR Mica has capacity to produce 1000tons fire resistantmica tapes per year.
With senior engineers having more than 15 year experience in mica product industrial field ,JR Mica is producing high quality mica products strictly according to ISO9001:2008 quality management system.
Type of mica tape
Phlogopite mica tape
1)JR-P-GS:Single-side glass fiber reinforced phlogopite mica tape
2)JR-P-GD:Double-side glass fiber reinforced phlogopite mica tape
3)JR-P-FS:Single -side PE film reinforced phlogopite mica tape
4)JR-P-GFD:Double -side glass &PE film reinforced phlogopite mica tape
Muscovite mica tape
1)JR-M-GS:Single-side glass fiber reinforced Muscovite mica tape
Synthetic mica tape
1)JR-S-GS:Single-side glass fiber reinforced synthetic mica tape
2)JR-S-GD:Double-side glass fiber reinforced synthetic mica tape
3)JR-S-FS:Single -side PE film reinforced synthetic mica tape
4)JR-S-GFD:Double -side glass &PE film reinforced synthetic mica tape
Specifications
Width of mica tape:4.5mm-1000mm
Thickness of mica tape:0.08mm-0.18mm
Length of mica tape:300m-2000m
Inner diameter:52mm,76mm,100mm
Maximum length of re-winding spool can reached 50000M
Shelf -life:12 months at good storekeeping conditions of dry,clean at roomtemperature.
High temperature resistance
JR-P phlogopite mica tape can ensure cable to pass fire testing at 750-950°C for 3 hours according to international standards of BS6387 and IEC60331 ,JR-S synthetic mica tape is suitable for fire resistant cable to fire at950-1050°C and JR-M calcinated muscovite mica tape is designed for cable to fire at1050°C.
mica tape for cable advantage
High performance of fire resistant and environmentally friendly.
Good flexibility property and high tensile strength.
Maximum length of re-winding spool is 50000M.
