- 品牌:金穗
- 型号:JS-450
- 工作原理:圆盘式研磨机
- 用途:颗粒研磨机
- 应用领域:工业
- 研磨盘规格:450mm
- 最大进样尺寸:6mm
- 最终出料粒度:10-100mesh
- 研磨套件材料:塑料
- 研磨罐容积:250
- 产量:100-250kg/h
- 功率:43kW
- 外形尺寸:2200*1760*3800mm
- 重量:1kg
- 主机马达:50HP
- 风机马达:7.5HP
- 刀盘圆径:450
- 总功率:43KW
产品介绍:

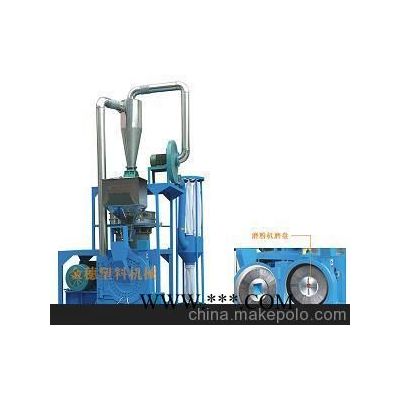

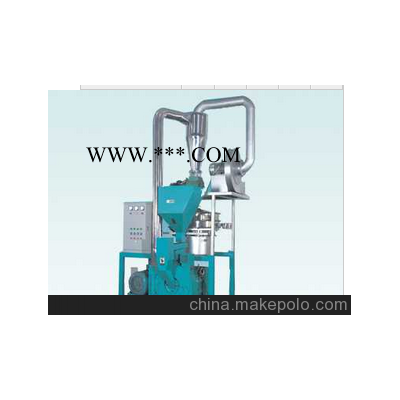

JS系列高精塑料磨粉机是将不同分子结构塑料或非塑料类磨成粉末状。工作进程是:原料通过定量的加料器均匀的送入磨室中,再由吸风机将磨好的粉末吸出磨室,经过筛选机筛选,较大颗粒再次被送入磨室中再研磨。塑料制品厂实践证明,在原料中加入粉体30%,将使其更好的塑化,且其制品的物性不变。因此,此机是塑料厂的利器设备。
JS Series high-precision plastic milling machine is a variety of different molecular structure of plastic or plastic ground into power .The work process are: raw materials both through quantitative feeder Smoothing into the grinding room, and then by the suction fan to suck out grinding mill good power room, through the screening machine, compared with grain particles was taken to the mill once again in the re-grinding. Plastic product Factory practice Certificate friends, and the raw material power 30%, will make it a better plasticizing properties and its products remain unchanged.
Therefore, this machine tool equipment plastic plant.
功能及特点Functions and features :
·全自动持续循环运作。
·结构紧凑,稳固,耐用。
·封闭式设计,利用自生风量与风压,将粉末收集,无粉尘渗漏。
·定刀与磨盘间隙调动简易,保养清料方便。
1. Automatic continuous cycle operation
2. Compact, solid and durable.
3. Closed set right foot, and Kang using inferior of wind pressure. The power the end of the collection, without dust leakage.
4. Fixed knife and the disc space mobility simple and maintenance easy clean materials.
技术参数:
型号/Type | JS-350 | JS-450 | JS-650 |
主机马达Motor | 30HP | 50HP | 75HP |
风机马达Blower | 5HP | 7.5HP | 10HP |
总功率Total Power | 27KW | 43KW | 63KW |
刀盘圆径Cutter Diameter | 350 | 450 | 650 |
进料粒径Feed Diameter | <6mm | <6mm< | <6mm |
出料细度Discharging pin size | 10~80 mesh > | 10~80 mesh > | 10~80 mesh > |
工作量Capacity (kg/h) | 50-100 | 80-180 | 100-350 |
机械尺寸L×W×H | 1800×1200×3300 | 2200×1760×3800 | 2500×2200×4300 |
