| 产地 | 郑州 |
|---|---|
| 加工能力 | 500000000 |
| 上市时间 | 2012年春 |
| 适用范围 | 五金 |
| 质量体系 | ISO9001 |
| 执行质量标准 | 美标 |
| 工艺类型 | 压力烧结粉末 |
| 是否标准件 | 是 |
| 是否库存 | 是 |
| 是否批发 | 是 |
| 作用对象 | 电线电缆丝 |
| 加工设备数量 | 50.0 |
| 模具材质 | 不锈钢 |
| 品牌 | 锐捷 |
| 加工定制 | 是 |
| 准入认证 | ISO9001 |
扒皮用碳化钨（TC）模具被广泛地用于扒皮应用，但TC扒皮模具没有长的使用寿命。扒皮聚晶金刚石（PCD）是一个更好的选择，它已被证明提供了不同的导线材料优异的表面光洁度和改进的一致性。聚晶金刚石模具扒皮PCD扒皮的承载面积模具支持剃导线材料对振动，通过PCD模具剃焊丝表面比由一个TC模具剃好得多。
PCD扒皮模具的寿命是合金模具寿命的20到80倍（视材料而定），长寿命减少替换模具的安装时间。
PCD扒皮模具优点：寿命长，一致性好，高耐磨性和耐冲击性。
应用：铜线，铝线，金线，钛合金丝等需要焊丝表面剃光。

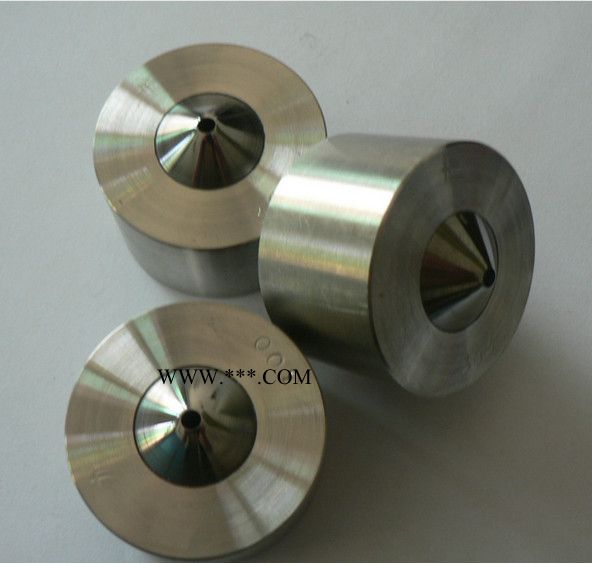

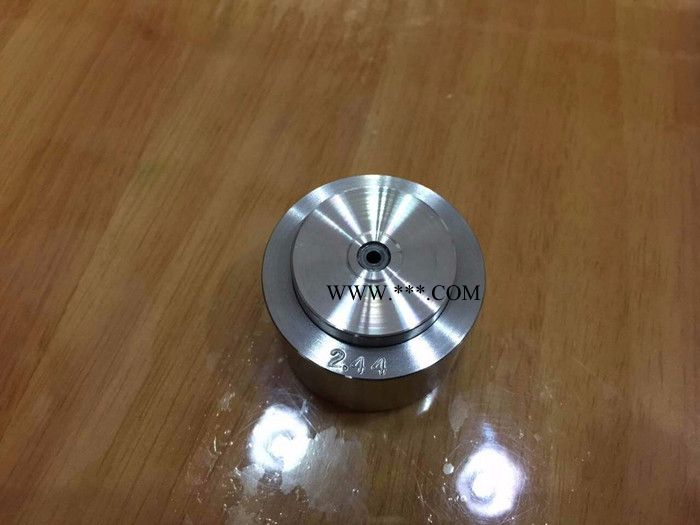

PCD Shaving Dies
Polycrystalline Diamond ShavingDies
The bearing area of PCD shavingdies support shaved wire materials against the vibration, the wire surfaceshaved by a PCD die is much better than that shaved by a TC die.
Shaving Dies with TungstenCarbide(TC) insert are widely used for shaving application. But TC shaving dieshaven't performed well relatively for lifetime, the shaved surface andhigh-precision controlled. To use polycrystalline diamond(PCD) for shaving is abetter choice. It has proven to provide a superior surface finish and improvedconsistency for different wire materials.
The lifetime of PCD shaving diesprovide 20 to 80 times (depending on materials) longer tool life than TCshaving dies. The long life reduces the **p time of exchange dies.
Advantages of PCD Shaving dies:long lifetime, good consistency, high wear resistance and impact resistance.
