| 动力形式 | 电动有气喷涂机 |
|---|---|
| 功率 | 4（w） |
| 规格 | 1200*660*1100 |
| 喷嘴直径 | 8 10 12 14 17 |
| 适用范围 | 室内外墙面喷涂 |
| 压力比 | 30bar |
| 种类 | 空气喷涂机 |
| 重量 | 250（Kg） |
| 品牌 | 温工 |
| 型号 | JP22 |
| 加工定制 | 是 |
| 最大输出压力 | 2（N/S） |
| 最佳喷射距离 | 10 |

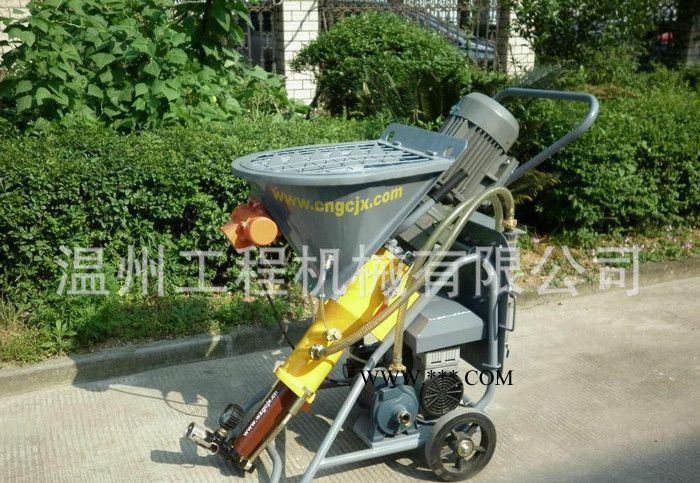

JP22是我公司引进德国技术制造的一款小型机械，设有水泵与水计量功能；具有自动搅拌、泵送、粘结、喷涂联合作业功能，适应各类不同特性与不同用途预拌干混砂浆施工，包括内外墙砂浆、保温砂浆、自流平砂浆、粘接砂浆、修补砂浆等；设置压力控制保护机构，实现远程控制操作；模块式结构，拆装方便，结构紧凑；体积小，移动方便，适应狭窄空间使用。
JP22 is small machine introduced German technology. It sets water pump and water measuring function. It has the combined function of automatic mixing, pumping, bonding, plastering. It’s suitable for construction of different characteristics and use of dry ready-mixed mortar including internal and external wall mortar, thermal insulation mortar, self-leveling mortar, bonding mortar, repairing mortar etc. It sets the pressure controlling protection mechanism and achieves the remote control. With modular and compact structure, it's easy to dissemble. Due to its small volume, it's easy move and adapt for use in narrow spaces.

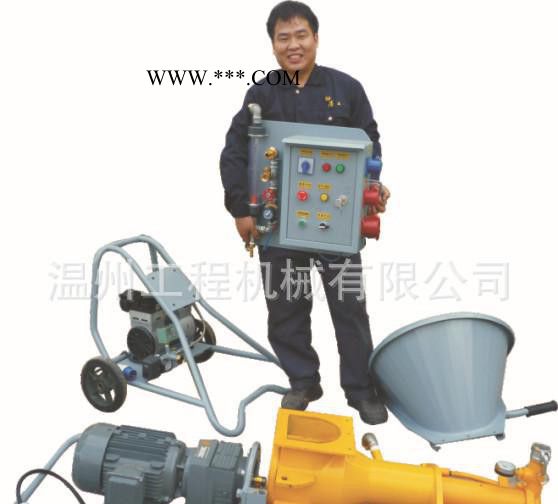

标准配置Standard equipment
混合区料斗Mixing hopper
泵设备Pump equipment Wenggong D40
水压泵Water pressure pump
齿轮马达Gear motor RF57-Y4KW
带快速连接器空气管Air tube with fast connector ID:￠13 Length:10m
防震压力计总成 Shockproof pressure gage assembly YN60-6Mpa
输浆管Delivery hose GB/T3683 25-1-W.P或
GB/T3683 32-1-W.P.9Mpa Length:10m
带有气源支持喷枪Spraying gun with air support（配喷嘴with spraying nozzle）
水量电枢控制集成Water volume armature control integration LZS-15 100-1000L/h
工具箱Tool box
操作说明书Operating instruction
JP22型砂浆喷涂机技术参数
Technical parameters of JP22 Mortar plastering machine
电源Supply power 400V 50Hz
电机功率Motor power 4.0 2.2kw
**大颗粒尺寸Maximum grain size 4mm
排量Output 25L/min
输送压力Delivery pressure 40bar
水平输送距离Horizontal delivery distance 40m
垂直输送距离Vertical delivery distance 15m
送料斗容量Hopper volume 50L
重量Net weight 185kg
外型尺寸Dimension (L×W×H) 1200*660*1100mm
注：以上数据只作参考，因选用砂浆的理化性能差别，其产生的各项数值也不相同。
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
