| 动力形式 | 电动有气喷涂 |
|---|---|
| 功率 | 5500（w） |
| 空气消耗量 | 0 |
| 喷射宽度 | 500mm |
| 喷嘴直径 | 8 10 12 14 |
| 适用范围 | 干粉砂浆喷涂 |
| 压力比 | 40bar |
| 种类 | 空气喷涂机 |
| 重量 | 240（Kg） |
| 品牌 | 温工 |
| 型号 | JP25 |
| 加工定制 | 是 |
| 最大输出压力 | 0（N/S） |
| 空载排量 | 0 |
| 最佳喷射距离 | 10米 |

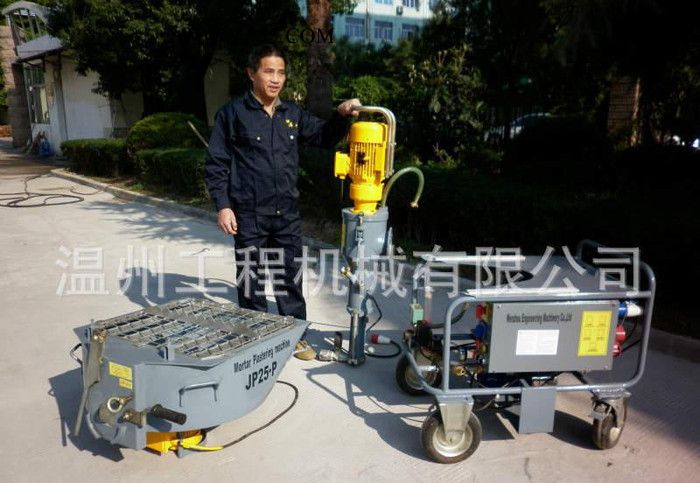

JP25是我公司引进德国技术制造的一款自动作业的机械，集合进料、混合、泵送、粘结、喷涂联合功能为一体，适宜各种不同特性与不同用途的预拌干混砂浆施工；设置自动送料机构；具备自动连续搅拌功能；配置计量水泵与供水系统；压力控制保护机构，实现远程控制操作；模块式结构，拆卸简单，移动方便，使用容易。
JP25 is an automatic operation of plastering machine introduced German technology. It combines multi-functions of feeding, pumping, bonding and plastering, it’s suitable for construction of different characteristics and use dry ready-mixed mortar. It sets automatic feeding system to achieve automatic continuous mixing function. It fixes measuring water pump and supply water system. It sets the pressure controlling protection mechanism and achieves the remote control. With modular structure, it's easy to move, dissemble and operate.
标准配置Standard equipment
混合区料斗Mixing hopper
泵设备Pump equipment Wenggong D40
带有气源支持喷枪Spraying gun with air support (配喷嘴with spraying nozzle)
水量电枢控制集成 Water volume armature control integration
水压泵Water pressure pump
输浆管Delivery hose GB/T3683 25-1-W.P或
GB/T3683 32-1-W.P.9Mpa Length:10m
带快速连接器空气管Air tube with fast connector ID:￠13 Length:10m
防震压力计总成 Shockproof pressure gage assembly YN60 6Mpa
搅拌器和硬质合金钢转子 Mixer screw shaft and carbide steel rotor
齿轮马达Gear motor SK25FAL-100LB/2
工具箱Tool box
操作说明书Operating instruction
JP25型砂浆喷涂机技术参数
Technical parameters of JP25 Mortar plastering machine
电源Supply power 380V 50Hz
电机功率Motor power 5.5kw
压缩机功率Compressor power 2.2kw
**大颗粒尺寸Maximum grain size 4mm
排量Output 25L/min
输送压力Delivery pressure 40bar
水平输送距离Horizontal delivery distance 40m
垂直输送距离Vertical delivery distance 15m
搅拌机功率Mixer power 1.1kw
搅拌机容量Mixer volume 115L
重量Net weight 240kg
外型尺寸Dimension (L×W×H) 1324*728*1443mm
注：以上数据只作参考，因选用砂浆的理化性能差别，其产生的各项数值也不相同。
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
