| 基材 | 石墨尼龙 |
|---|---|
| 适用范围 | 工業設備零件 |
| 材质 | 石墨 |
| 产品等级 | 优 |
| 产品认证 | SGS |
| 厚度 | 多种 |
| 类型 | 石墨尼龙 |
| 特性 | 耐摩 |
| 颜色 | 黑色 |
| 阻燃性 | 阻燃 |
| 宽度 | 20（mm） |
| 品牌 | ASAHI |
| 型号 | 001 |
| 加工定制 | 是 |

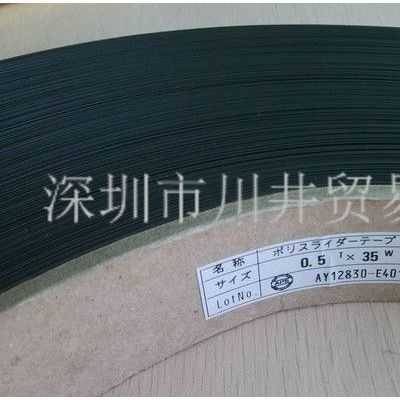

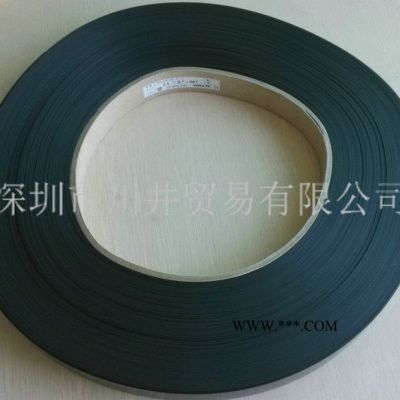

ASAHI 石墨尼龙胶带，朝日石墨尼龍膠帶（Polyslider Tape）
什麼是Polyslider?
Polyslider是我們開發用於壓制精密機械零件的一種含有填充物的尼龍塑料，填充物通常是石墨，具其含量很高，便這種材料具有很強的承載力。
什麼是Polyslider帶?
Polyslider是由Polyslider制成的特殊帶，其中含有均勻分布的石墨。擠壓成形的Polyslider帶經滾壓后，帶中的石墨顆粒便壓平了，這大大提高了帶的承載力。該制造工藝由我們自行開發並獲得專利 （日本專利號：507409）
Polyslider帶的卓越性能
Polyslider很少因受衝壓引起變形，這是因為平整的石墨顆粒使Polyslider具有很強的抗受壓蛻變性能以抵御衝擊。
Polyslider帶卓越的機械性能羅列如下：
（1）抗蛻變能力強。所以厚度不變。
（2）摩擦系數低。
（3）立體結構穩定性好，不因受潮產生立體結構變化。
（4）傳熱效果好。
（5）密度低、重量輕。
應用范圍
Polyslider帶已被廣泛接受用作各種工業設備零件。
例如它大量用作自勤化設備部件、家用電器、食品機械和普通工業設備，不勝枚舉。
典型實例
止推熱圈和止推軸承
摩擦片（定時開關等）
活勤套管
襯墊
制動帶
安裝在機器滑斜面上使用
使用方法
用衝壓機將Potyslider帶衝成適當的幾何形狀。衝制過中很少會發生要除毛刺的現象。
若用Polyslider制成止動墊圈和摩擦片，需將配數金目的接觸表面磨平，亞去毛以及削除斜角。
Asahi Polyslider
WHAT IS POLYSLIDER?
POLYSLIDER is a filled nylon plastics developed by us for molding precision machine parts. Filling material is mainly graphite and its high content give the material better bearing capacity.
WHAT IS POLYSLIDER TAPE?
POLYSLIDER TAPE is a special tape made from POLYSLIDER in which graphite particles are evenly distributed. Extruded POLYSLIDER TAPE is rolled and the graphite granules in the tape are pressed flat, which markedly improve the bearing capacity of the tape. This manufacturing process is originally developed by us and patented (Japanese patent No.507409)
ADVANTAGES OF POLYSLIDER TAPE
POLYSLIDER TAPE seldom causes creep deformation by the effect of thrust load. It is because POLYSLIDER TAPE has high resistance to compressive creep and supports the thrust load with its flat graphite granules.
POLYSLIDER TAPE offers the following mechanical property advantages:
(1) High resistance to creep, hence no change in thickness.
(2) Low coefficient of friction.
(3) Good dimensional stability because of least dimensional change by absorption of moisture.
(4) Good thermal conductivity.
(5) Low density and lgith weight.
APPLICATIONS
POLYSLIDER TAPE has already been used for numerous industrial parts with most favorable acceptance. For example, it is extensively used in automotive parts, household electrical appliances, food machinery, general industrial machinery and many others.
TYPICAL EXAMPLES
Thrust washers and thrust bearings
Friction plates (time switches, etc.)
Floating bushs
Gaskets (sheet packing)
Brake bands
Use by being mounted on the slideway of machines
APPLICATION METHODS
POLYSLIDER TAPE is punched out to desired geometry with a punching press to usel. It seldom burrs during punching.
When using POLYSLIDER TAPE to make thrust washers or friction plates, smooth the contact surface of the mating metal. Also deburr and bevel the edges. REMEMBER - presence of even a slight burr will scratch the surface of POLYSLIDER TAPE resulting in accelerated wear.
あらゆる製品の摺動部にかかせない存在
独自の圧延製法により製造された「ポリスライダーテープ」は、従来の樹脂シートと比べて厚み変化が起こりにくく、摩擦係数が小さい等の特徴を持ちます。長年の実績により、自動車部品、モーター、OA機器などの摺動部に使用され、高い評価と信頼を得ています。実績と信頼のある「ポリスライダーテープ」だからこそ、様々な用途にも安心してご利用頂けます。
