首页 > 供应产品 > 专业制造气流干燥机锯末干燥机锯末烘干机 气流烘干烘干机,脱硫石膏选山科阳牌放心省心

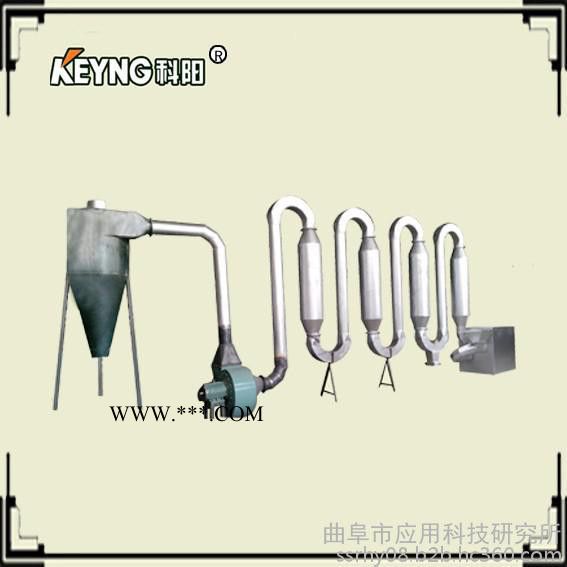

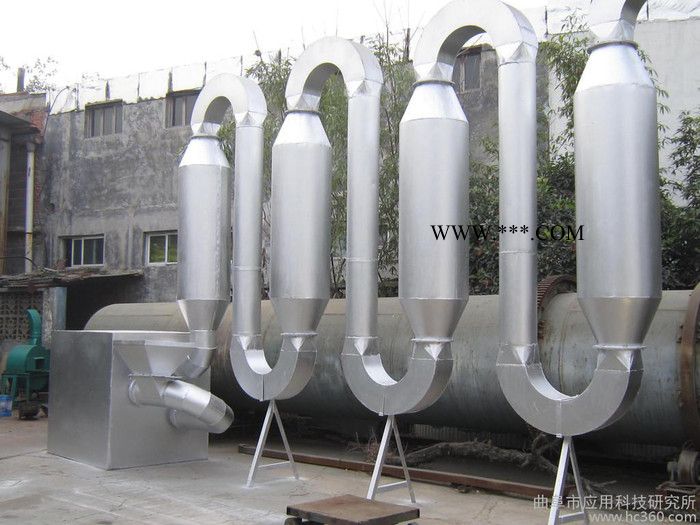

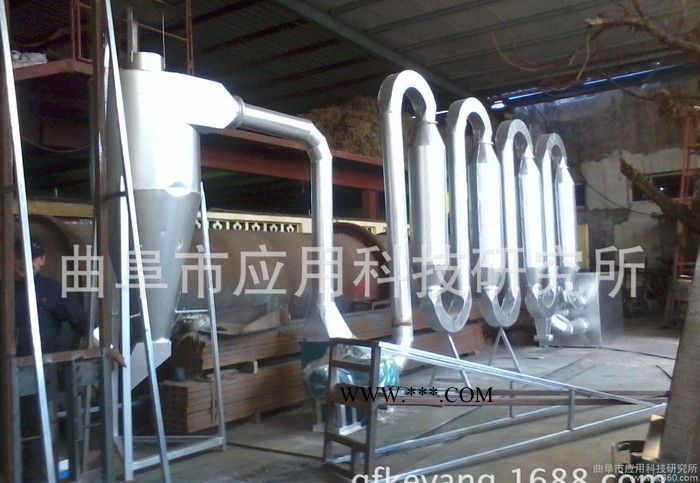

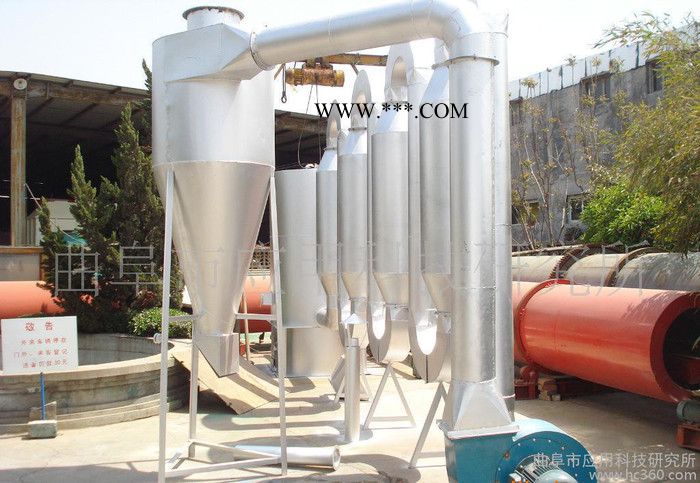

专业制造气流干燥机锯末干燥机锯末烘干机 气流烘干烘干机,脱硫石膏选山科阳牌放心省心
产品: 浏览次数:817专业制造气流干燥机锯末干燥机锯末烘干机 气流烘干烘干机,脱硫石膏选山科阳牌放心省心
品牌: 科阳
用途: 木粉等粉状物料的烘干
适用对象: 锯末等粉状物滚
单价: 18000.00元/台
最小起订量: 1 台
供货总量: 50 台
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2021-12-28 00:29

详细信息
用途 木粉等粉状物料的烘干
适用对象 锯末等粉状物滚
动力类型 电动
包装 7000*1200*3200(mm)
售后服务 质保一年
产品规格 QL400
产品类型 全新
工作原理 旋流
规格 400*400型
类型 烘干设备
适用物料 多种可用
重量 2900kg
操作方式 连续式
干燥介质 空气
湿物料运动方式 组合式
品牌 科阳
型号 QL400
加工定制






                                                                        烘干机



                                                                         适用范围:



                                                                        KYQL系列气流干燥机适用于机制木炭业的粉状、小颗粒状物料的干燥,是目前我国机制木炭加工中理想的物料干燥设备。适用于各中、小型木炭厂配套使用。该烘干系统吸收了本公司成熟技术优化设计而成,具有产量高、能耗低、干燥快,干燥效果好、回收率高等优点。



                                                                        工作原理:



                                                                        该机主要由热风炉、U型脉冲管、风机、刹克隆等部分组成,在引风机作用下热风和物料同时被吸入管道中。含水物料悬浮于高速热气流中,通过干燥管道。由于脉冲管作用,气流发生旋转,使物料不断翻滚,增大了与热气流的传热交换,提高了热效率。物料在3-5秒时间内即完成干燥,被旋风分离器及袋式收集器收集。回收效率高达98%,可连续干燥大量物料。



                                                                        主要参数:




                                                                                                                                                                                                                        型 号




                                                                                                                                                                                                                        产量



                                                                                                                                                                                                                        (Kg/h)




                                                                                                                                                                                                                        功 率



                                                                                                                                                                                                                        (KW)




                                                                                                                                                                                                                        备注




                                                                                                                                                                                                                        KYQL400




                                                                                                                                                                                                                        400-600




                                                                                                                                                                                                                        7.5




                                                                                                                                                                                                                        含炉子




                                                                                                                                                                                                                        KYQL600




                                                                                                                                                                                                                        800-1000




                                                                                                                                                                                                                        18.5




                                                                                                                                                                                                                        含炉子




                                                                                                                                                                                                                        KYQL900




                                                                                                                                                                                                                        1500-2000




                                                                                                                                                                                                                        45




                                                                                                                                                                                                                        提供炉子图纸




                                                                        DSC01345
